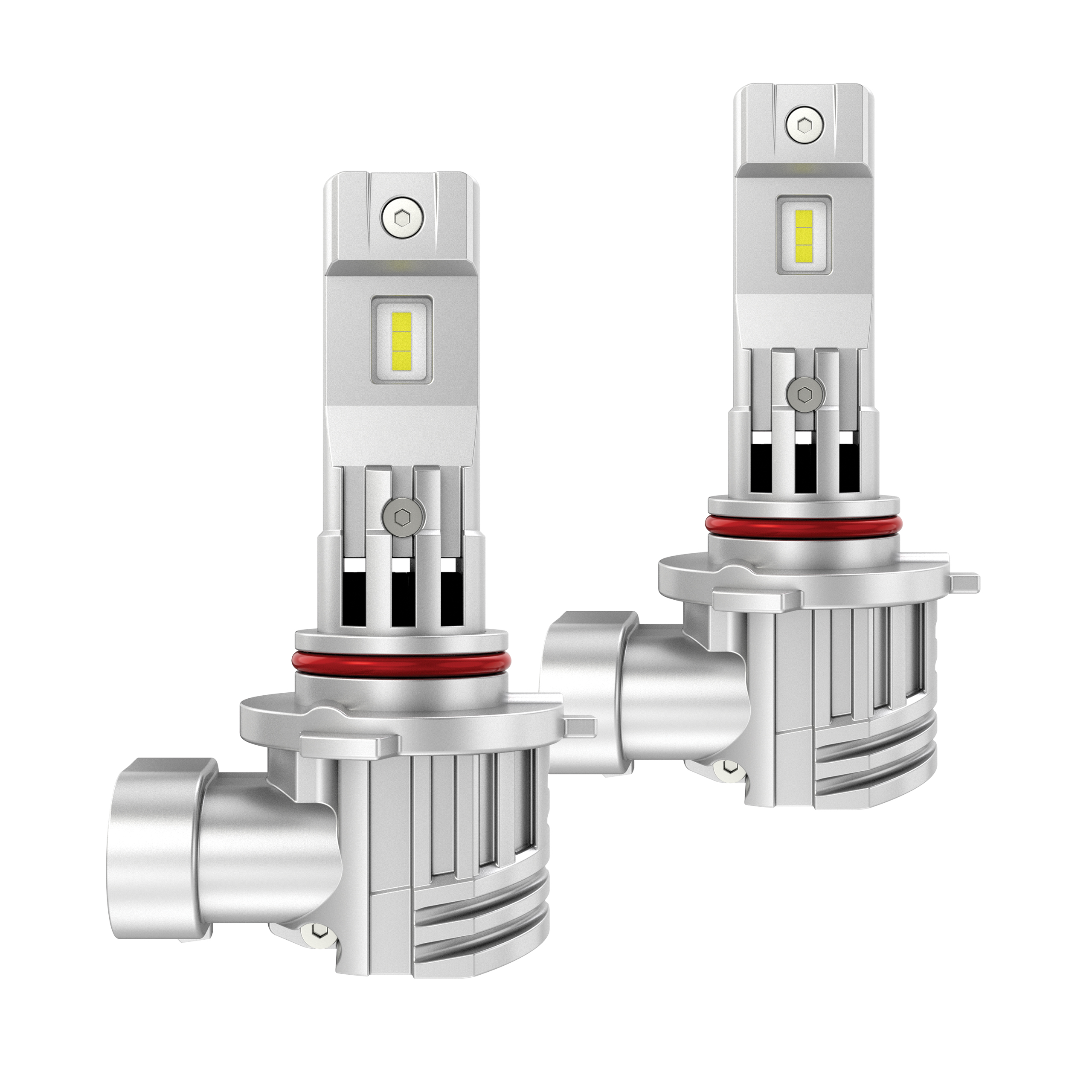

Direct Fit Plus V2 – LED Headlight Kit – Premium Halogen Replacement

***LAUNCHING OCTOBER 2025***
***PREORDER AVAILABLE BY CONTACTING INVISION***

12-24V – PREMIUM HALOGEN REPLACEMENT
2500 RAW LUMENS PER BULB

The Direct Fit Plus V2 brings a complete, ground up re-design from the first version of the product.

Key changes / additions

• 12V only to 12-24V Multivolt – The range now becomes an option for 24V vehicles.
• Improved thermal management – Airflow has been improved to reduce LED chip heat even further, leading to even longer life expectancy. This is an important change for professional users who have their lights on for longer periods of time.
• Double sided eutectic technology – That may sound like a mouth full, but in simple terms, the circuit board is now only 0.6mm thick, leading to a more precise focal point for the beam. This product is as true to halogen sizing as technologically possible which means they will perform exceptionally well in both reflector and projector headlights.

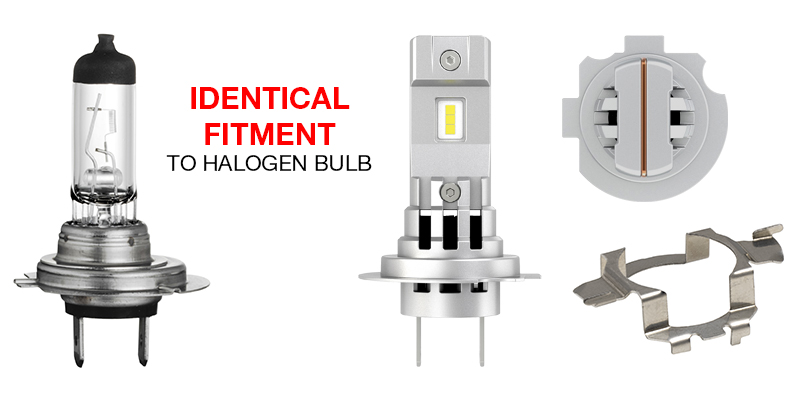

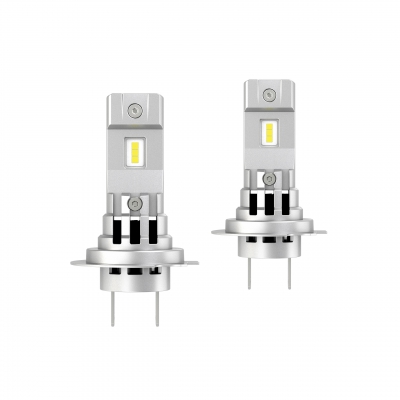

Due to the new collar design and smaller bulb size, both the standard Direct Fit and Direct Fit Plus H7 bulbs are now compatible with most unique H7 retaining / clip systems and headlights.

Vehicle electronic systems can conflict with the LED bulb and will require an additional CANbus unit during installation. The CANbus unit will allow the vehicle’s electronics to accept the LED bulb into its system. Please visit the CANbus page for more information. Before fitting the LED headlight conversion kit, we suggest you consult a qualified Auto Electrician or call Invision Sales to see if your vehicle is listed as requiring an additional CANbus product.
The majority of vehicles will not require any additional products.

Direct Fit Plus V2 Features

• 12-24V Multivolt
• Up to 2500 Lumens per bulb
• 5700K White light colour
• 21W Per beam
• Ultra long life expectancy
• Shock resistant
• Will operate in temperatures -45/+85°C
• IP65 Weather resistant
• Internal driver and premium fan cooling
• Suitable for Projector & Reflector headlights

Warranty

• 2 Year – Standard driving conditions: For normal day to day driving & recreational 4×4

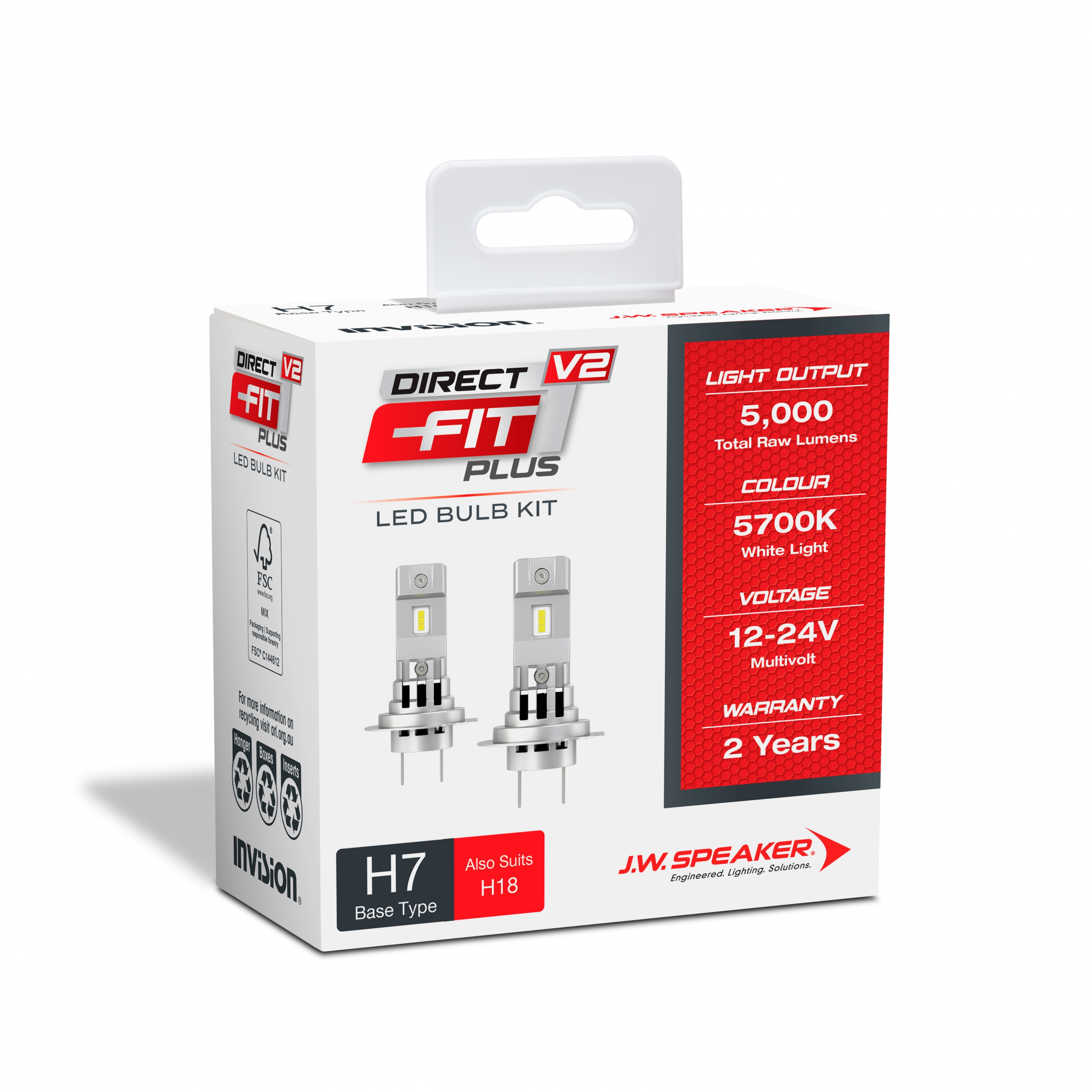

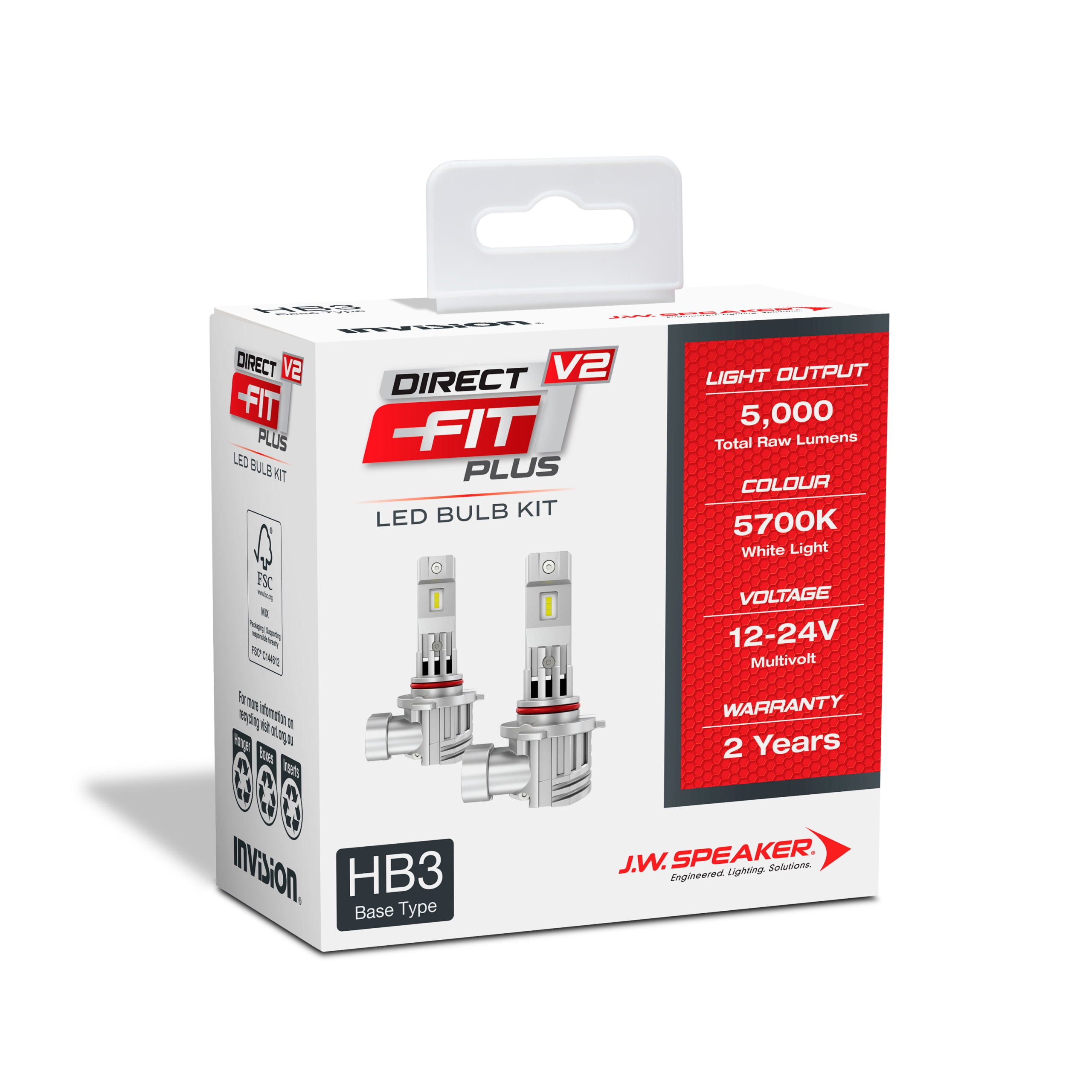

Kit Contents

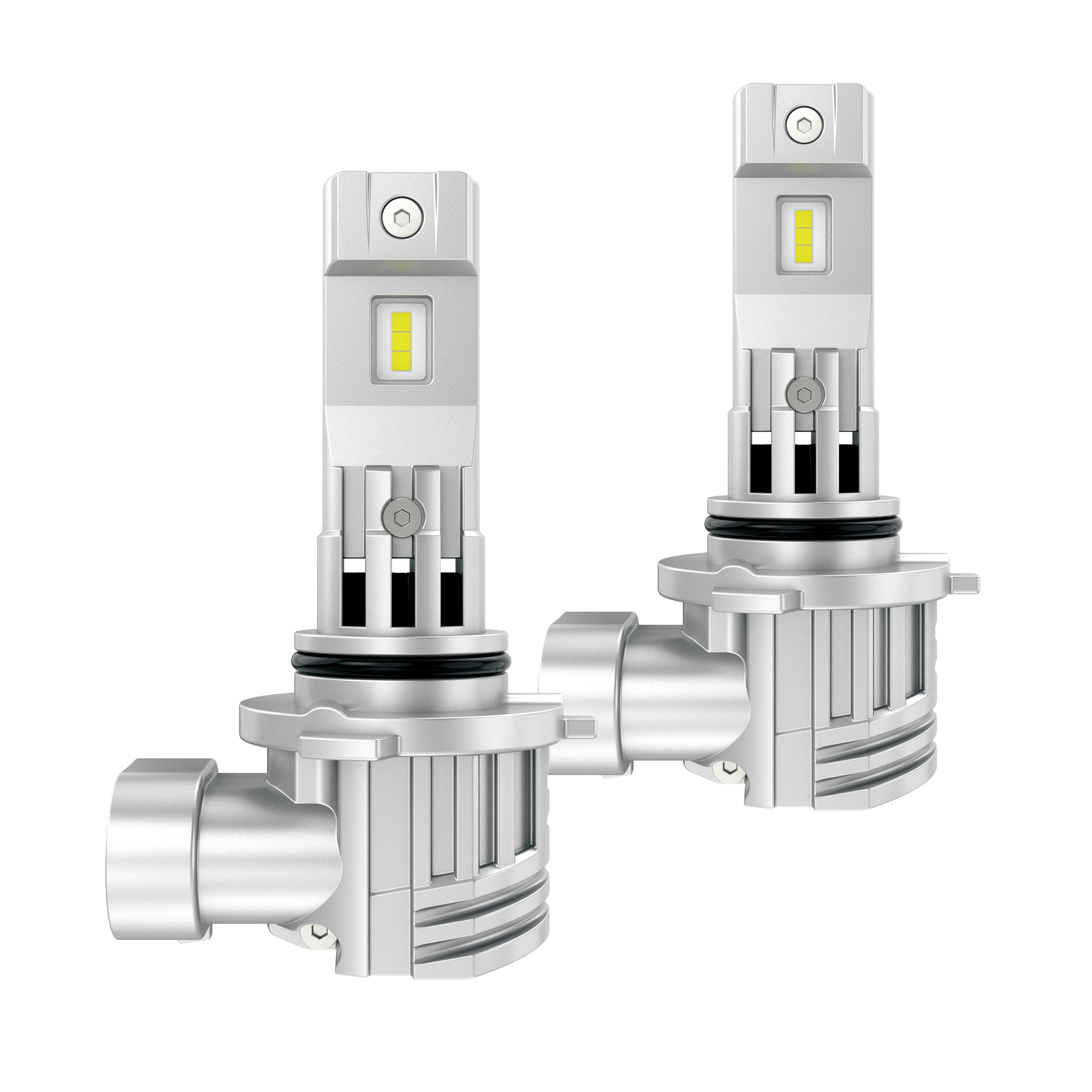

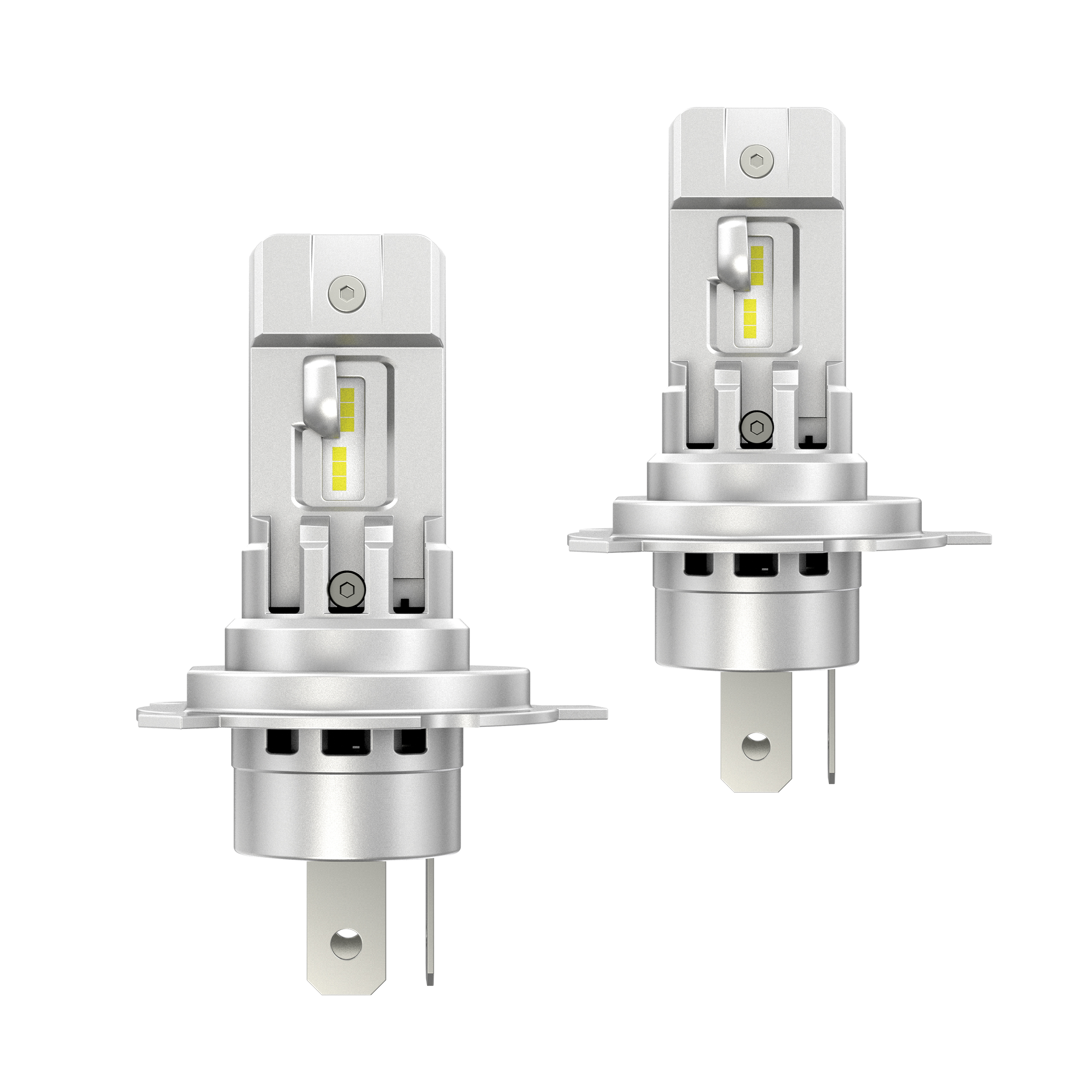

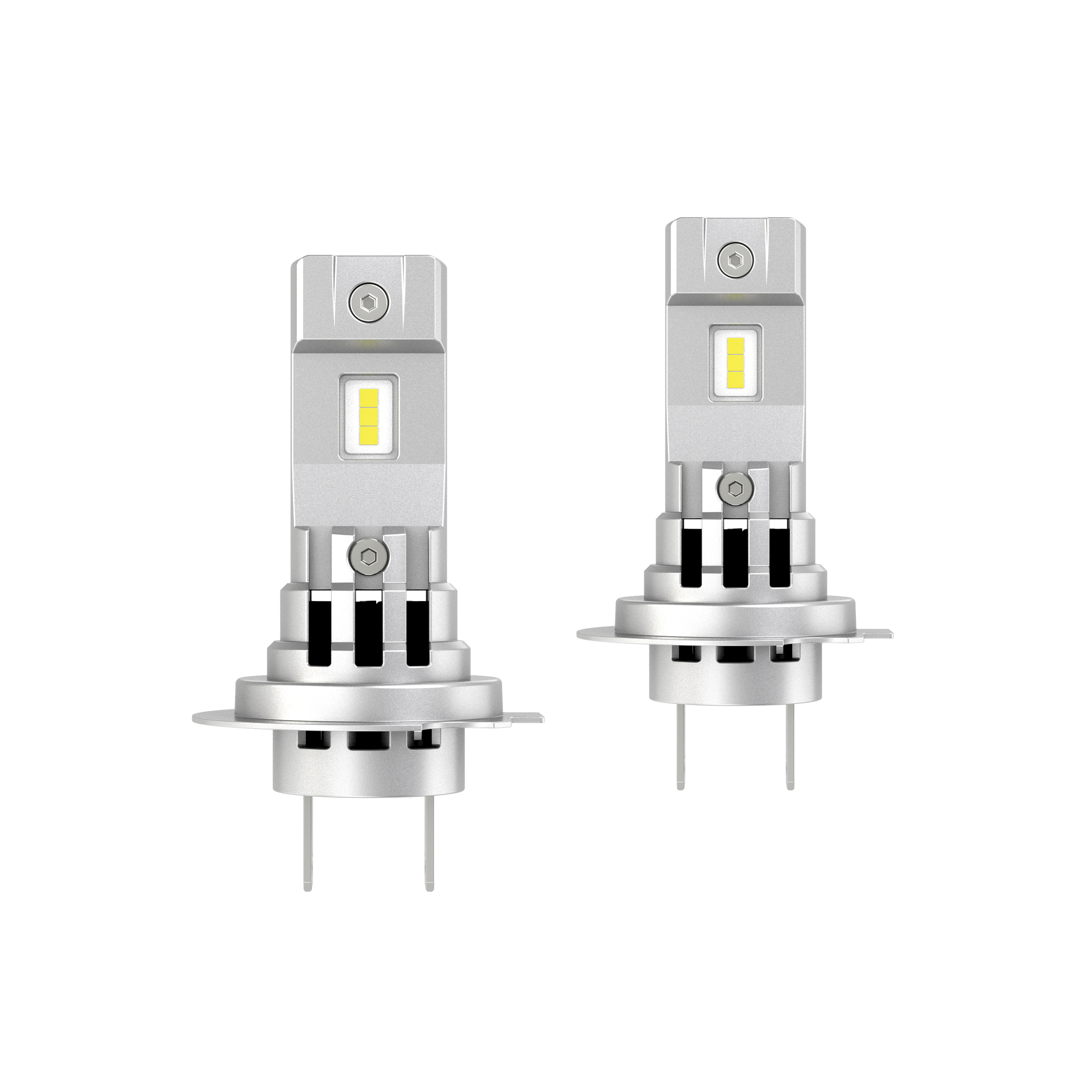

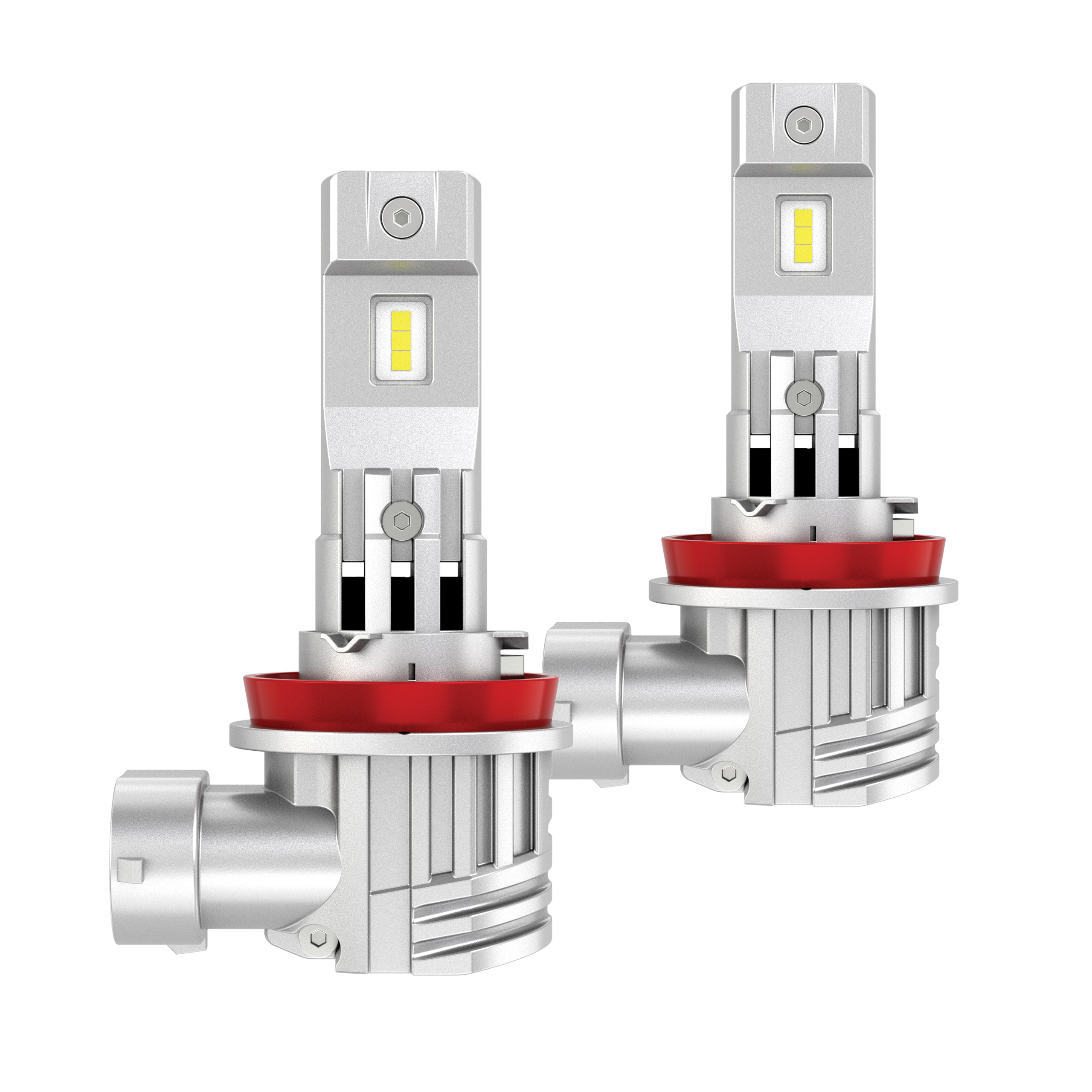

• 2 x LED Headlight bulbs

THIS PRODUCT IS NOT APPROVED FOR ADR, ECE OR DOT
