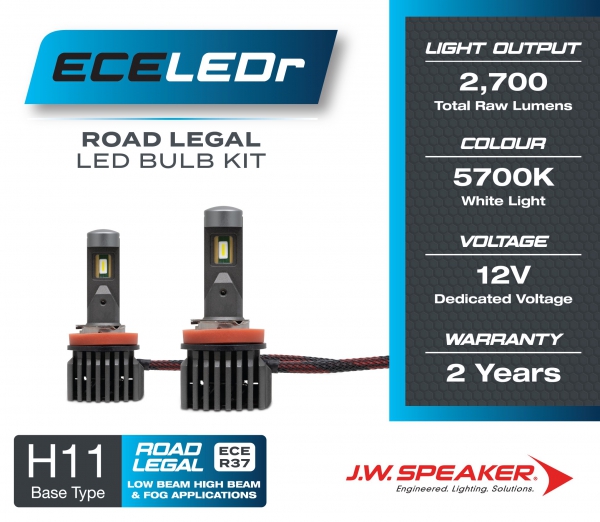

960011 – ECE Approved / Road Legal – H11 LED Bulb Kit

Bulb Specifications

• Part Number: 960011
• Base Type: H11
• EAN13 Barcode: 9362255000657
• Voltage: 12V DC
• Light Output: 1350 raw lumens per bulb
• Colour: 5700K white light
• Power: 15W per bulb
• Operating Temp: -45°/+85°C
• IP Rating: IP65
• ECE Approvals: R10, R37
• Kit Contents: 2 x LED bulbs
• Warranty: 2 years

Text Installation Instructions

Note Before Installation:
If you are unsure whether this product is suitable for your vehicle, please consult a qualified auto electrician or mechanic.

Warning:
A fault may occur in the vehicle electrical system and/or pose an operational and/or traffic safety risk, if the LED replacement bulb is not used in accordance with the bulb instructions and vehicle manual.

1) Make sure the vehicle and headlights are turned off before proceeding with the LED bulb upgrade.
2) Disconnect the plug from the original bulb.
3) Twist the bulb to unlock it from the headlight housing.
4) Gently remove the original bulb.
5) With the cable exiting the bulb aiming downwards, insert the LED bulb into the headlight.
6) Twist the bulb to lock it into place.
7) Connect the LED bulb plug to the original vehicle plug.
8) The avoid damage, the power module must be secured to either;
a) A solid structure behind the headlight b) Within the headlight itself.
9) Turn the vehicle and headlights on to test the new LED bulbs. A successful installation will mean the bulbs function without any vehicle warnings. If warnings do appear, a CANbus module will be required for successful operation. (PN: 990011CB)

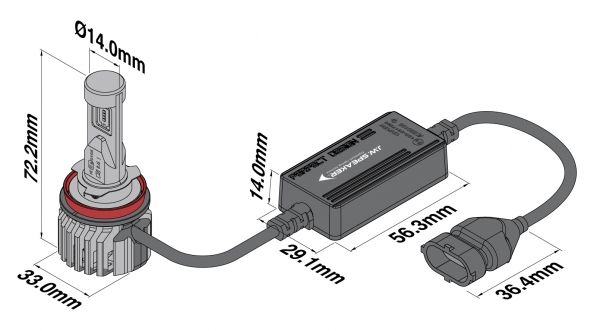

Product Dimensions

Applicable Products / Vehicle Models (Partial)

> DOWNLOAD THE INSTRUCTION MANUAL HERE <
